Introduction

This procedure describes how to configure BarTender Integration Builder (from BarTender 2016) for label printing integrated with E-WMS.

In earlier BarTender releases (up to version 10), BarTender Commander was to be used. Please refer to this document for configuration of BarTender Commander.

When you are upgrading from BarTender Commander to BarTender Integration Builder, this document provided by Seagull may be useful.

Description

BarTender label printing can be integrated using two methods in E-WMS:

print labels directly from an Exact Globe Next workstation, where BarTender must be installed on that workstation
print labels through a server, using BarTender Integration as event server

This server method is applied as label printing method, when:

The E-WMS setting 'BarTender method' is set to 'Server' - then all labels are printed through BarTender Integration.
- one of the advantages of using this method for all labels, is that BarTender only needs to be installed on a server and not on workstations anymore
or, the label is initiated from WMSclient on a scanner during a scanning process, in one of following processes:
- SKU Management: printing SKU (pallet, box) labels in receipts processes
- Generated SSCC: printing SSCC shipment labels during the order picking process
- Serial/Batch Generation (product update 404): printing labels with generated serial- or batch numbers during receipt processes

Because the WMS scanner client has no printing capacity, the printing is initiated by the WMS ASP IIS server, creating 'trigger files' for BarTender Integration.

This is how label printing from the hand terminal works:

The 'label print' button is pressed on the hand terminal

A label print screen is shown, the operator has to generate numbers, confirm quantity and/or number of labels (depending on the process)

WMS creates records in specific tables, on which label printing (the SQL view) is based:

SKU Management: new SKU numbers are created in table csPickitSKUMaster

Generated SSCC: temporary records are created in table csPickitLabelPrinting, SSCC sequence numbers are increased

S/B Generation: New S/B numbers are created in table ItemNumbers, temporary records are created in csPickitLabelPrinting

WMS reads the label configuration for the current process step, as entered in menu System, E-WMS, Labels to determine what label(s) are to be used.
It is possible to configure more than one label for the same process. All configured label layouts will be started in sequence.

The IIS server creates a .DD file in the 'BarTender scan folder'; this file is a BarTender XML script file, containing amongst other, following information:
- the path and the name of the label layout to use
- the unique transaction ID to print the label for (available in the new records created in step 3), or embedded text data to be printed

BarTender Integration (continuously running) is triggered by this new DD file to use the contents of that file to start BarTender, with the specified BarTender label

BarTender is started and prints the label

When the E-WMS setting 'Bartender method' is configured to 'server', then SQL data is not accessed by BarTender, but E-WMS provides text data embedded in the XML script files.

This plan of approach describes following steps:

Requirements
Installation of BarTender Suite
Configure E-WMS settings
SQL view
BarTender label
Configuring WMS label
Configuring BarTender Integration Builder
Testing labels

Requirements for using E-WMS with BarTender Integrations

License requirements
- E-WMS I - SE1380 (or older license SE5700 Pick-IT)
- BarTender Enterprise (when using versions older than 9.4) or BarTender Enterprise Automation (9.4 and higher), see E-WMS system requirements
Usage of E-WMS communication type 'ASP'
Installation and configuration of BarTender and BarTender Integrations on a PC or server in the network (using a BarTender demo license is not supported)
In practice, the WMS webserver is the best choice for installation of the BarTender suite because of the usage of the 'BarTender scan folder', which is preferably a local folder on the IIS server.
The label printer has to be supported by BarTender (see printer list of Seagull Scientific)
Of course you need labels, check if these labels meet your environmental requirements (cold storage requires specific labels)
BarTender label layouts (consultancy may be required), sample labels are available
Preferably a dedicated SQL login to use within the label layouts, with sufficient rights to read the necessary data
When using SQL-server as data source in the layout, the BarTender label layouts are database specific. When using the labels in two or more companies, you need to create copies of the BarTender layouts and manage these separately.
When using embedded text as data source, then the labels are not database specific.
The views used in the BarTender labels need to be created in each Exact Globe Next company (SQL database) used for label printing

Installation of BarTender Enterprise Suite

BarTender can be obtained from Seagull Scientific. BarTender can be downloaded from their site, but you will need a valid license. Using the demo version is not supported in E-WMS. For the installation procedure, please refer to Seagull Scientific documentation.

For E-WMS, the Bartender Enterprise Automation edition is required. You can read more about E-WMS requirements for BarTender here.

This edition allows the use of specific required BarTender Integration XML command options. This external link provides more information on BarTender editions.

Install the BarTender suite including the Integration Builder, preferably on the IIS server acting as webserver for E-WMS. The 'BarTender scan folder' needs to be a local folder on the IIS server, because the account used by the IIS process will not have rights to access network shares. You also need to install the Seagull License Server on the same or another server in the network, this service will manage your BarTender licensing based on number of used printers.

The BarTender suite installs some Windows services, E-WMS only requires the service 'BarTender Integration Service' (and of course the 'Seagull License Server'). The BarTender System Service (used for BarTender reprinting and logging) and Printer Maestro are not required for E-WMS, but do offer enhanced BarTender functionality like reprinting labels or a 'History explorer' which can offer valuable information in case of BarTender error situations.

E-WMS settings

Depending on the process you are printing labels for, you need to configure following WMS settings:

WMS General Settings section 'Label printing'
for SKU Management: configure SKU Management settings: GS1 numbers and prefix/sequence numbers (WMS SKU Management: general SKU settings)
for Generated SSCC: configure WMS SSCC settings: GS1 numbers and prefix/sequence numbers
for S/B Generation: configure WMS General settings: S/B templates

SQL view

A SQL view is always used in the label process, but its usage depends on the 'Bartender method':

'Server': the SQL view is used by E-WMS to check if records are to be printed, then to retrieve the data to be printed and embed this data in the XML script file created for BarTender Integrator. The field names of the view output are offered as the field headers to BarTender.
'Client': the SQL view is used by E-WMS to check if records are to be printed, E-WMS starts BarTender, next the SQL view is used by BarTender during printing of the label

You can retrieve sample views for hand terminal label printing from E-WMS - Bartender integration: sample views and layouts for all processes. The views require some mandatory fields (like unique transaction ID), besides that you are free to add any fields to the view (and to the label).

BarTender label

When using the BarTender server method

For creating labels when using the BarTender 'server' method, please see document How to create BarTender layouts based on a text file data source.

When using the BarTender client method

Please refer to this document on how to link a SQL table or SQL view, with a Query Prompt, in BarTender Designer.

Configure WMS label

This applies to using both the BarTender 'server' or 'client' method.

The created SQL view and BarTender layout have to be linked to a WMS process step. Go to menu System, E-WMS, Labels and create a new label as described in document WMS system menu: Labels.

Choose the BarTender layout and SQL view created earlier, and select the appropriate applications:

Generated SSCC' printing from hand terminal during order picking

"SSCC - Handheld: Shipment": to print shipment labels
"SSCC - Handheld: Pallet": to print pallet labels
"SSCC - Handheld: Box": to print box labels

SKU Management - hand terminal printing in stock receipt processes
"SKU - Handheld: Inner": to print 'box' labels
"SKU - Handheld: Outer": to print 'pallet' labels

Serial/Batch generation - hand terminal printing in stock receipt processes
"S/B hand terminal: batch item": to print labels for batch items
"S/B hand terminal: serial number item": to print labels for serial number items

You can retrieve sample labels from WMS Bartender integration: sample views and layouts for all processes.

Configuring BarTender Integration Builder

After installation of the BarTender Enterprise Suite, Integration Builder can be started in Start, Programs, BarTender 2016, Integration Builder.

This step describes how to create a new 'integration', to trigger label printing based on files created by E-WMS.

Please note that only the basic required steps are documented. For any specific configurations or problems, please refer to Seagull Scientific

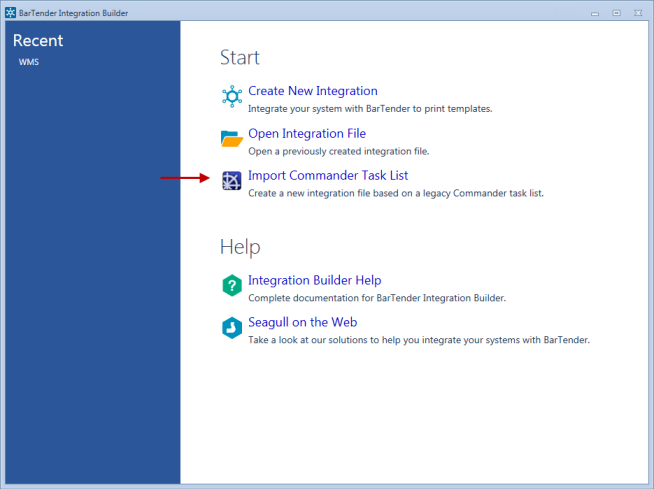

When you already used BarTender Commander before and upgraded to BarTender 2016 or later, you can convert existing Commander tasks:

Creating a new integration

To create the new task which handles E-WMS labels, choose:

'Create New Integration'
Integration method: 'File'

File Detection

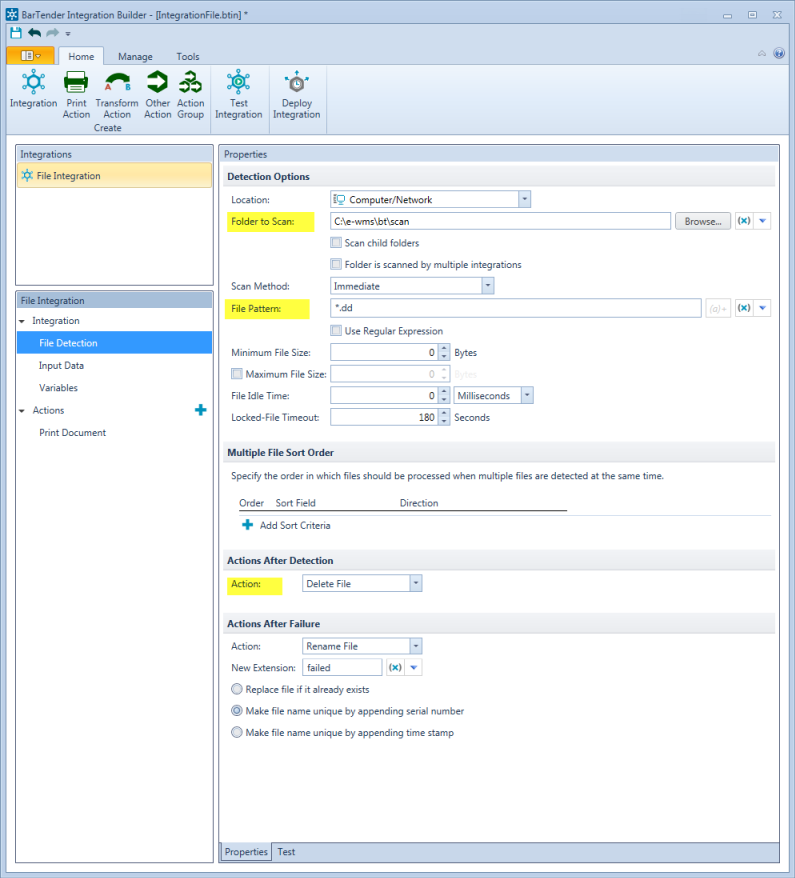

In the first configuration tab 'File Detection', the following marked settings have to be changed:

Folder to Scan: Please enter the local folder configured in E-WMS as BarTender Scan Folder
File Pattern: change to: *.dd
Action: to avoid having thousands of small files left after printed labels over time, it is advised to set 'Action' to 'Delete file'

Input Data

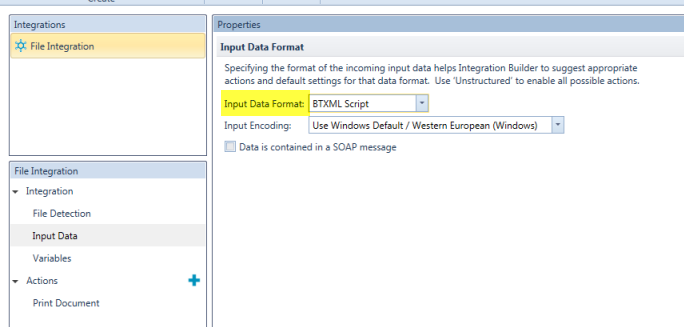

In the next configuration tab 'Input Data', following has to be changed:

Set 'Input Data Format' to: 'BTXML Script'

Actions

Default, an entry 'Print Document' will be created under section 'Actions'.

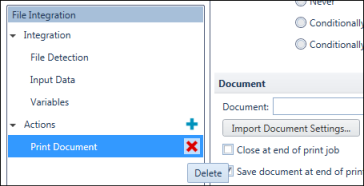

Remove 'Print Document' by pointing at this option and choosing the red X.

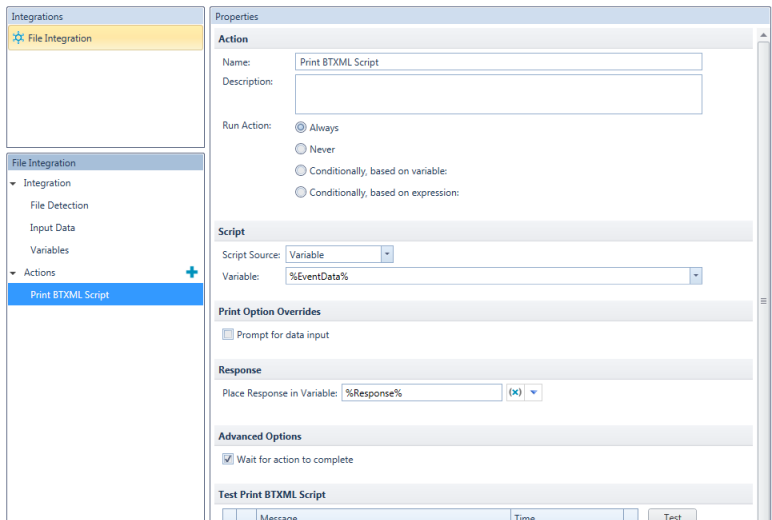

Then press the '+' sign behind Actions and choose: Print BTXML script.

The configuration as default created does not have to be changed.

Save integration

Press the 'save' icon in the left upper corner of the screen.

You can now save the integration as 'Bartender integration file' in a folder, preferably use the name 'WMS' in the file; for instance 'WMSIntegrationFile.btin'.

Deploying integration

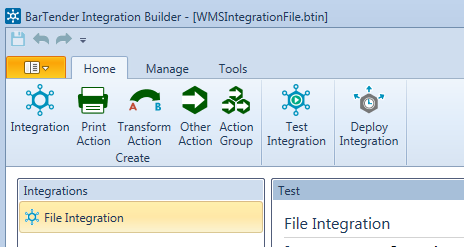

In the top of the screen, select 'Test integration' and next 'Deploy Integration'

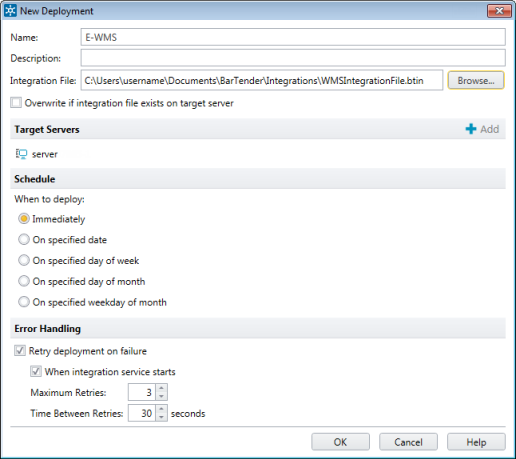

Next, you can create a deployment. Assign a name, optionally in a specific folder, and press OK:

Monitoring integrations

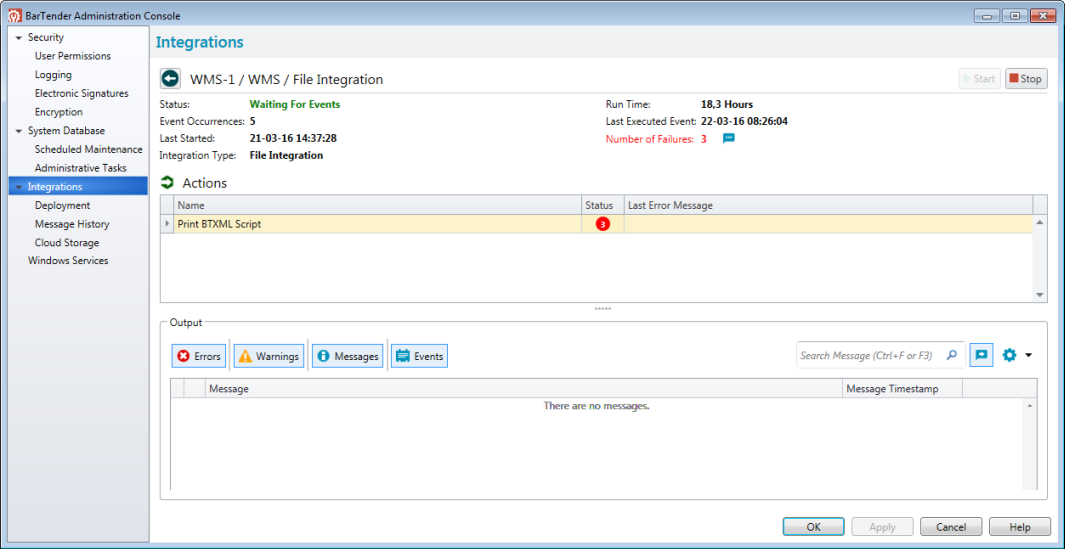

Running integrations are monitored in a separate program; the BarTender Administration console. This program can be started from the BarTender programs folder, and is also started automatically from the Integration Builder.

Testing labels

You can set up for example NovaPDF printer to save the prints to files automatically, without dialogue screens. Go to Start/Settings/(Devices and) Printers and right-click on 'NovaPDFProv4'.
Choose printing preferences and tab Save. Enable option 'Use predefined settings' and press 'Configure Save Options'.

Folder: set to a folder where the generated PDF files can be saved
File name: press 'Macro' to choose a predefined file name format
When file exists: choose 'Auto number new files'

When using this PDF printer as default printer in the BarTender label, prints will be automatically saved as PDF files.

The next step is to determine if the labels would be printed from the hand terminal, when using the SKU button in receipts processes.

Please note that configured printer settings may be user-specific.

Trouble shooting

For general troubleshooting of this label print process, please see Troubleshooting label printing.
