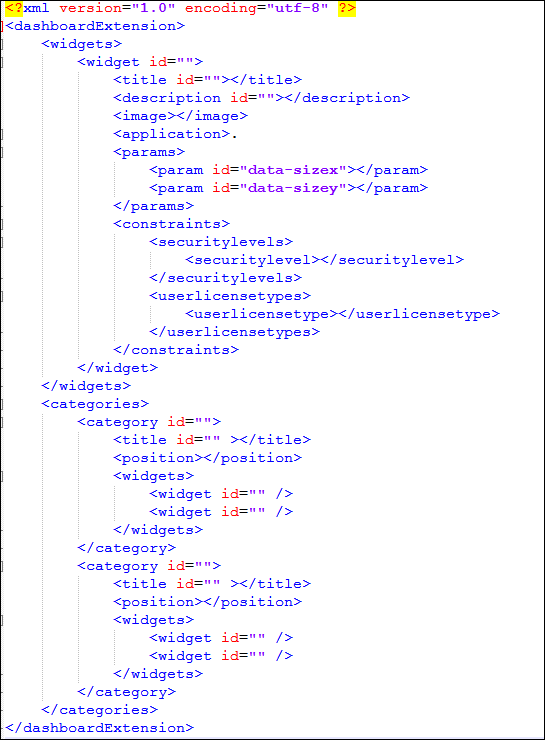

Currently the widgets in the widgets catalog are loaded from the Webparts.Home.xml file. To support extensions on widgets, you have to create an XML file called “Webparts.Ext.xml”. In this XML file, you can define the extended widgets. This new file is a subset of Webparts.Home.xml. Once the file is created, it should be placed in the XML folder of the Exact Synergy Enterprise installation directory. After that, it will be necessary to either perform an IISReset or close all open browsers and reopen the browsers again in order for the extension to take effect. The following is an example of the Webparts.Ext.xml file:
Similar to the standard Webparts.Home.xml file, the structure of the Webparts.Ext.xml file is divided into two sections: Widgets and Categories. However, for the Webparts.Ext.xml file, it should begin with "<dashboardExtension>".
See the following table for more information:
Parent node
Child node
Description
Remarks
Widgets > Widget
Title
The title of the widget.
If the widget defined has the same widget ID as the one available in the standard, then the standard widget will be overwritten with this extended widget.
The description of the widget.
The image of the widget.
Applications
The ascx file.
Param
Additional param needed by the widget.
The ‘data-sizex’ and ‘data-sizey’ are used to determine the default size of the widget (number of grids).
Constraints
To determine the security level and user license type .
Categories > Category
The title of the category.
If the category ID is the same as the one available in the standard, then the title in the standard category will be overwritten with this title.
Position
The position this category should appear. The position of the first standard category is 1.
The position node is only applicable for the extended xml and not available in the standard xml. This is an optional node.
When it is not defined, then the new category will be added after the last standard category.
When a value is defined, then the category will be inserted at the defined position. If the same position is defined more than once in the extended xml, the category with the same position number will be added after the last standard category.
Widgets > widget
List of widgets to be available under the parent category.
The widgets defined here can be any standard widget or newly-created custom widgets.
If the defined category is a standard category:
· If the widget defined, either standard or custom widget, does not exist in the category, it will be added after the last standard widget in the category (based on the sequence the widget nodes are defined in the xml).
· If the widget defined already exists in the category, it will not be added again.
If the defined category is a new custom category:
· The widgets will be added based on the sequence that the widget nodes are defined in the xml.
