Note: Keep in mind that this solution requires an additional implementation that may involve extra costs. Please contact your account manager for more information.
Elasticsearch allows you to use the All option in the quick search feature in Exact Synergy Enterprise (ESE). This document describes the installation and configuration of Elasticsearch, which are recommended to be performed by a consultant.
This document contains the following sections:
Return to top
Note: It is recommended to install Elasticsearch on a separate server.
a. Via command prompt
Note: If the message “JAVA_HOME environment variable must be set!” is displayed, you will have to first set the environment. For more information, see How-to: Setting JAVA_HOME environment variable.
b. Via Windows service

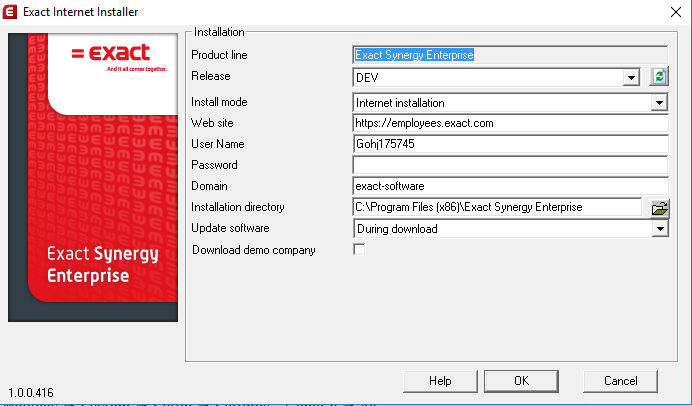

Elasticsearch can also be installed via the product updater from product update 260 onwards.
Note: The Install Elasticsearch screen will be displayed if the following conditions are met:
Normally, you will want to keep the Elasticsearch and Java installations the same on all the nodes in the Elasticsearch cluster. Thus, updating of Elasticsearch or Java requires some preparation.
Elasticsearch depends heavily on Java. Thus, any Elasticsearch processes that are running can be interrupted by the Java installation. Make sure the responsibilities are taken care of by the other nodes before starting the update. This is to ensure there is zero down time.
Before you start to update all the nodes in the cluster, a plan must be created whereby when a node is removed from the cluster, the other nodes will take over the job of the cluster. Once the cluster is working again (the status of the cluster will be green), the extracted node can be updated. When the new Java is installed, and the variable is updated, you can stop and start the service via the command prompt “service stop” and “service start”. Once this is done, the node can be put back into the cluster, and all the responsibilities will be redistributed again. The next node can be updated only when this is completed.
For more information, see https://www.elastic.co/guide/en/elasticsearch/reference/current/rolling-upgrades.html.

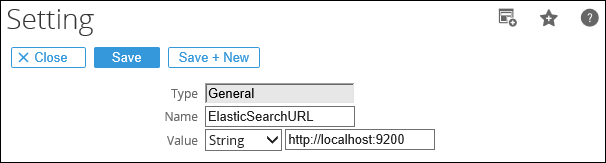

This setting needs to be performed to enable the Elasticsearch engine in ESE.
By using the Exact Elastisearch Tool, you can retrieve all the data from the ESE database and load them into Elasticsearch. In addition, you can remove all indexed data and rebuild the index.
You should run this tool for the first time. It is not necessary to run this again when there are new documents, employees, et cetera, as these data will automatically be loaded into Elasticsearch.
The following steps describes the process of loading the data into Elasticsearch.
Note: It may take some time to create the indexed data and you cannot perform any action on the database while the process is running.
The engine for the search feature uses a standard set of boost values. You can change the values according to your preferences by using the Exact Elastisearch Tool. These settings are saved in a BoostFile, which you can then export as an .xml file.
You can skip this step if you prefer to use the default boost values.
Note: As the value goes higher, the search results will display more relevant records. You can use this setting to limit the number of records that will be displayed, thus, allowing for better performance of the search feature.
Note: As the value goes higher, it makes the index more relevant than the other. For an example, when searching for a full name, the documents with the employee’s name will always be displayed before the personal card of the employee. This is because usually, the employee’s name appears more frequently in the document (at the Creator, Modifier, and Owner fields, and possibly in the title and content of the document) than in the personal card (at the Full name field). Due to this, documents are always displayed first before the personal card of the employee. To ensure that the personal card of the employee is displayed first in the search results, you can increase the index boost value.
Note: If you have multiple web servers, you have to place the .xml file in the xmd folder of all Exact Synergy Enterprise installations.
You can define sets of words as synonymous via the Synonyms tab on the left panel of the Exact Elastisearch Tool. A set of words defined as synonymous indicates that when searching for a given word, the data of other words (of the same set) are also displayed.
For example, if you have defined the words "Appraised" and "Approved" as synonymous, this means that when you search for the word "Appraised", documents with the word "Approved" are also displayed.
For more information on defining synonyms, see Exact search tool help file.
You can define noise words by clicking the Noise words tab on the left panel of the Exact Elastisearch Tool. Noise words are words that are used often, such as "the" and "and". When such a word appears in a search command, the list of the search results can be very long.
You need to install the Synergy Search Index Updater solution in ELIS to ensure that the entities in ESE can be indexed by Elasticsearch. For more information, see How-to: Installing Synergy Search Index Updater in ELIS.

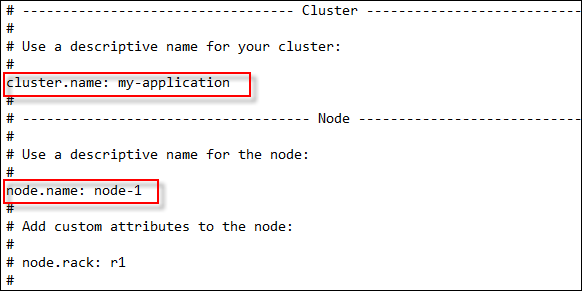

ESE has a complex security model and this security model is also applied when using the All option in the quick search feature. In this context, it is important to limit the access to the Elasticsearch servers, which is used by this feature. The connection from ESE to Elasticsearch makes use of the Elasticsearch REST API on port 9200. Elasticsearch can function also as a cluster (for more information, see the Disaster recovery section). In this case, port 9300 is used for communication between the Elasticsearch nodes.
Two methods can be used to limit access to the Elasticsearch:
Note: Port 9300 should be opened for communication between the Elasticsearch nodes.

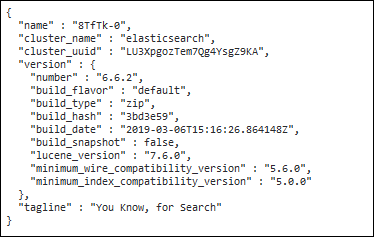

Verify that the Elasticsearch server is only accessible from the ESE server. You can do this by contacting the Elasticsearch server from the Internet browser and see if you get a response back. On the internet browser, go to http://<Elasticsearch>:9200 and if the firewall is still open, you will receive the following message:
{ "name" : "8TfTk-0", "cluster_name" : "elasticsearch", "cluster_uuid" : "LU3XpgozTem7Qg4YsgZ9KA", "version" : { "number" : "6.6.2", "build_flavor" : "default", "build_type" : "zip", "build_hash" : "3bd3e59", "build_date" : "2019-03-06T15:16:26.864148Z", "build_snapshot" : false, "lucene_version" : "7.6.0", "minimum_wire_compatibility_version" : "5.6.0", "minimum_index_compatibility_version" : "5.0.0" }, "tagline" : "You Know, for Search" }
This message indicates that the Elasticsearch server is still accessible and you will have to take steps to restrict the access.
In case of a disaster where the Elasticsearch database is corrupted or an Elasticsearch node is no longer available, there are two possible scenarios to perform a disaster recovery:
Note: In case of a disaster, using an Elasticsearch cluster with two nodes does not add any value as this is the same as using just one node.
