Exact Synergy Enterprise

Logging in to Shop Floor Control via Exact Synergy Enterprise

Menu path

Exact Synergy Enterprise login page à Shop floor control page

Introduction

Shop Floor Control (SFC) in Exact Synergy Enterprise fully utilizes data from the shop floor to communicate production statuses to relevant people, such as the master schedule planners, managers, or shop floor operators. This ability to gain real-time visibility into the progress of the job operations supports planners in balancing and prioritizing work based on the capacity available. With this, the planners and managers would also be well-prepared to address matters related to quality, resources, or changes to requirements.

With SFC, the shop floor controllers can:

• retrieve up-to-date information on the operations from Exact Globe Next and view them in Exact Synergy Enterprise, and
• perform SFC-related activities, such as registering the operations, issuing materials, and updating operation status in Exact Synergy Enterprise.

Roles and rights

To access this page, the Shop floor control role is required. In addition to that, the following requirements need to be met:

Exact Integration

You have to install Exact Integration for the synchronization of data between Exact Globe Next and Exact Synergy Enterprise. For more information, see How-to: Installing Exact Integration.

Exact Shop Floor Control

You have to install Exact Shop Floor Control to have the custom resolver and config file installed. For more information, see How-to: Installing Exact Shop Floor Control.

Exact Globe Next

• You have, at least, Exact Globe Next product update 406.
• You have the SE4000 – E-Production license in your Exact Globe Next.
• The Operations check box under the Operations section at System à General à Settings à Manufacturing settings is selected.
• At least one user must exist at System à HR & Security à People.

Exact Synergy Enterprise

• You have, at least, Exact Synergy Enterprise product update 251.
• You have the YA4010 – Shop floor control license in your Exact Synergy Enterprise.

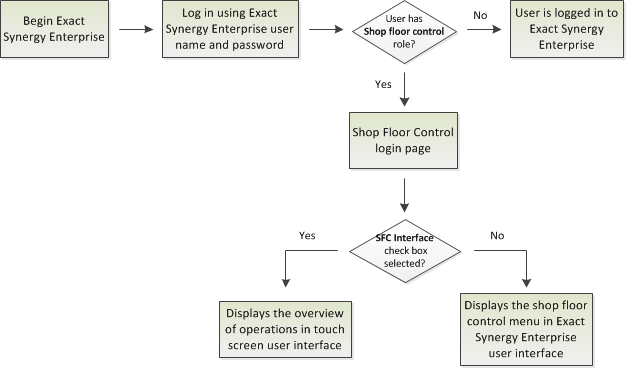

The following flow chart details the log in process to use the SFC features:

Notes:

• For more details on function rights, go to System à Setup à Security à Function rights.
• For more details on roles, go to System à Setup à Security à Roles.

What version are you using?

The information in this document is based on product update 251.

How do I log in to Shop Floor Control in touch screen user interface?

1. Log in to your Exact Synergy Enterprise. If you have been assigned the Shop floor control role in Exact Synergy Enterprise, the Shop floor control page will then be displayed.
2. Select the SFC Interface check box.
3. At Operation, select an operation.
4. Click Login. The Operation overview page will be displayed.

How do I log in to Shop Floor Control in Exact Synergy Enterprise user interface?

1. Log in to your Exact Synergy Enterprise. If you have been assigned the Shop floor control role in Exact Synergy Enterprise, the Shop floor control page will then be displayed.
2. Clear the SFC Interface check box.
3. Click Login. You will be logged in to Exact Synergy Enterprise.

Tips and tricks

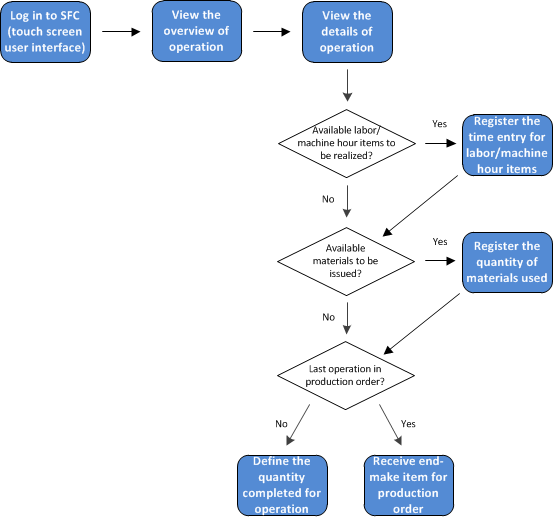

The following chart illustrates the flow of SFC-related activities in a touch screen user interface:
