Database documentation for Exact Lightweight Integration Server (ELIS)

Introduction

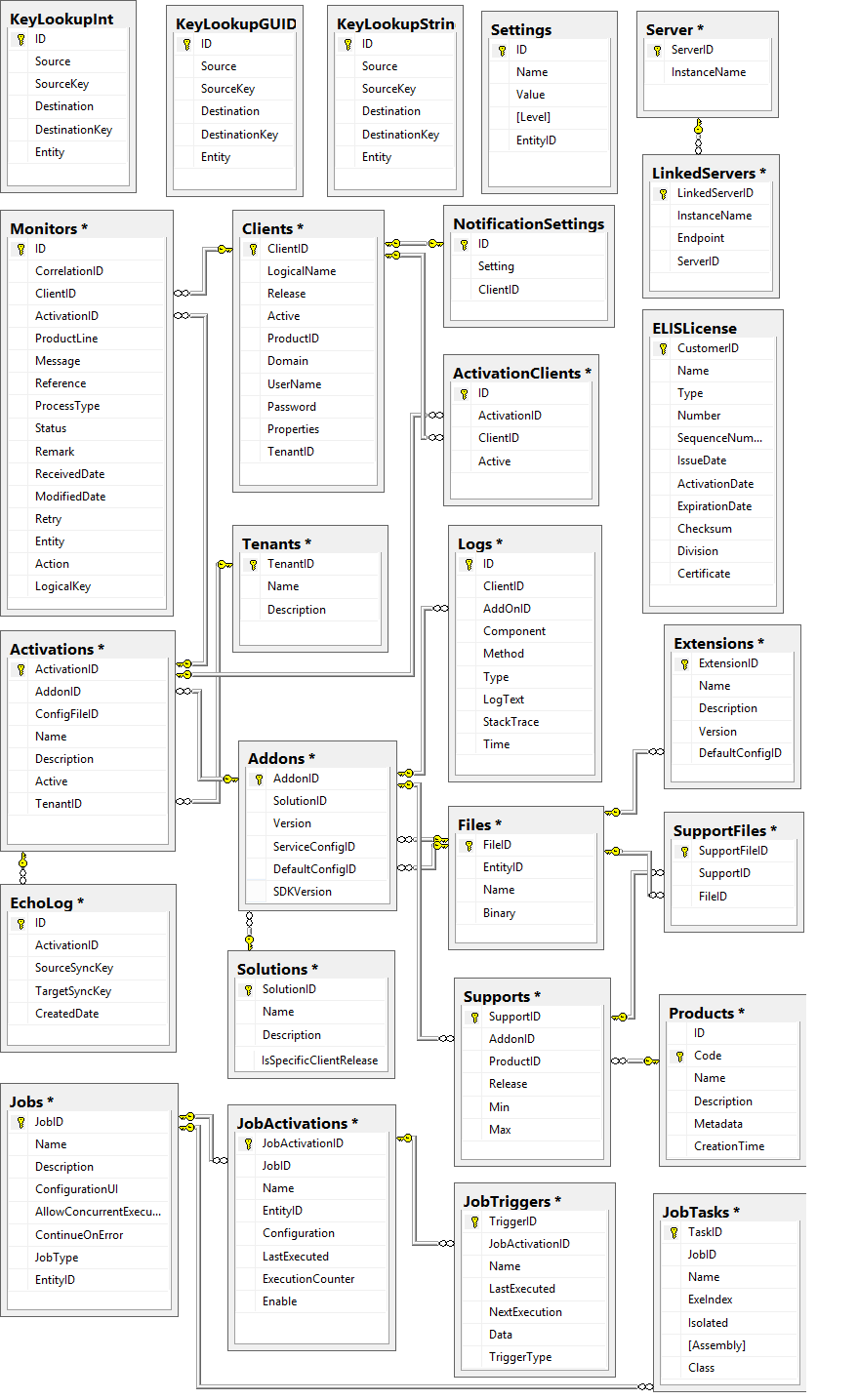

This document describes the database structure design of Exact Lightweight Integration Server (ELIS). The relationship between the tables and how the tables are linked to each other will be explained.

Table description

Server

This table stores all the servers for ELIS that are connected to the database.

Column	Description
ServerID	Unique identifier of the server
InstanceName	Logical name of the server

LinkedServers

This table is used for multi-tenancy whereby multiple ELIS are linked to one database. The information of the servers is stored in this table.

Column	Description
LinkedServerID	Unique identifier
InstanceName	Logical name of the server
Endpoint	Address of the endpoint
ServerID	ID of the server information and this column refers to the Server table

Products

This table stores the products that are installed in ELIS as extensions, for example, Exact Globe Next and Exact Synergy Enterprise.

Column	Description
ID	Unique identifier for each product
Code	Unique code to distinguish the different products, for example, Exact Synergy Enterprise and Exact Globe Next
Name	Product name
Description	Product description
Metadata	Metadata of the endpoint package that describes the contents of the package
CreationTime	The time the product is created

Clients

This table stores the clients that are registered for each product, for example, different versions of a product that is installed in the same domain or different domains and machines. Every client is connected to the product by the ProductID.

Column	Description
ClientID	Unique identifier of the client
LogicalName	Unique logical name selected for the client
Release	Release version of the client
Active	Indicates whether the client has been activated
ProductID	Product ID of the client
Domain	Domain name indicating the location of the installed client
UserName	User name to connect to the client
Password	Password to connect to the client
Properties	Additional settings about the client in the XML format, whereby the format of these settings depends on the product that the client belongs
TenantID	ID of the tenant to which the client belongs

Solutions

This table stores the information of thesolutions.

Column	Description
SolutionID	Unique identifier of the solution
Name	Name of the solution
Description	Description of the solution
IsSpecificClientRelease	A flag to identify if the solution is release-dependent

Add-on

This table stores the information of the ELIS add-ons. Each add-on is related to a solution based on the SolutionID. The add-on binary files are stored in the Files table and accessible based on the DefaultConfigID and ServerConfigID fields.

Column	Description
AddonID	Unique identifier of the add-on
SolutionID	ID of the solution to which the add-on belongs
Version	Version number of the add-on
ServiceConfigID	Service configuration that is stored in the Files table
DefaultConfigID	Default configuration that is stored in the Files table
SDKVersion	SDK version of the add-on which is used to check the compatibility with the SDK version of the ELIS console

Extensions

This table stores the information of the ELIS extensions. However, this table is currently not in use because there is no interface in the ELIS management console to register the extensions. This table is related to the Files table based on the DefaultConfigID field.

Column	Description
ExtensionID	Unique identifier of the extension
Name	Name of the extension
Description	Description of the extension
Version	Extension of the version
DefaultConfigID	ID of the extension configuration file that is stored in the Files table

Supports

This table indicates the product version that is supported by the add-on and the number of clients.

Column	Description
SupportID	Unique identifier of the support information
AddonID	ID of the add-on
ProductID	Product that is supported by the add-on, and this field refers to the Code in the Products table
Release	Product version that is supported by the add-on
Min	Minimum number of clients that are supported by the add-on
Max	Maximum number of clients that are supported by the add-on

SupportFiles

This table stores the files that are supported by the add-on.

Column	Description
SupportFileID	Unique identifier of the support file
SupportID	ID that is referring to the Supports table
FileID	File ID that is supported by the add-on, and this field refers to the Files table

Activations

Each add-on will be activated based on a different set of clients with different configurations. This table stores all the add-ons that have been activated and the information of the configurations.

Column	Description
ActivationID	Unique identifier
AddonID	The add-on ID that is activated, and this field refers to the Addons table
ConfigFileID	ID of the configuration file for each activation
Name	Name of the activation
Description	Description of the activation
Active	Indicates whether the configuration is active
TenantID	ID of the tenant to which the client belongs

ActivationClients

This table stores the clients that are attached to the activation.

Column	Description
ID	Unique identifier
ActivationID	Activation that is linked to the client, and this field refers to the Activations table
ClientID	Client that is attached to the activation, and this field refers to the Clients table
Active	Indicates the status of the activation

Files

This table stores the files that are used by ELIS including the configurations, libraries, and other files.

Column	Description
FileID	Unique identifier
EntityID	The entity to which the file belongs, such as product, add-on, and others
Name	Name of the file
Binary	The file in binary format

EchoLog

This table stores the information of the messages so that the message echo will be blocked.

Column	Description
ID	Unique identifier
ActivationID	The activation ID that causes the echo, and this field refers to the Activations table
SourceSyncKey	Synchronization key that is generated at the source node
TargetSyncKey	Synchronization key that is generated at the target node
CreatedDate	The date the message was created

Monitors

This table stores the notification messages.

Column	Description
ID	Unique identifier of the monitor
CorrelationID	Unique identifier that is used to group the messages related to a particular operation
ClientID	ID of the client that triggered the operation, and this field refers to the Clients table
ActivationID	ID of the activation of the message, and this field refers to the Activations table
ProductLine	The product line of the message, and this field refers to the Products table
Message	The message received by ELIS
Reference	This is a reserved field for internal use
ProcesType	Indicates the components that are processing the message, whereby “0” is for ELIS and “1” is for the provider
Status	An integer value that indicates the status of the message, whereby “0” is for received, “1” for pending, “2” for processing, “3” for successful, “4” for failed, "5" for re-trying, "6" for echo, and "7" for skipped
Remark	Remark that describes the additional information of the message
ReceivedDate	Date and time the message was received
ModifiedDate	Last date and time the message was modified
Retry	Number of times the message was processed
Entity	Entity on which the operation is performed
Action	Action to be performed, such as create, read, update, and delete
LogicalKey	Entity key

Logs

This table stores the information of theoperations that have been performed by ELISand the errors that occurred during the operations.

Column	Description
ID	Unique identifier of the log
ClientID	ID of the client that is involved in the operation
AddonID	ID of the add-on that is involved in the operation
Component	Component that performs the operation
Method	Method of performing the operation
Type	Type of log, whereby “0” is for the information and “1” is for the error
LogText	Text message of the log
StackTrace	Stack trace to find the sequence of the methods that are involved in the operations
Time	The time the log was created

Settings

This table stores the settings of ELIS. This table is currently used forSMTP server settings.

Column	Description
ID	Unique identifier
Name	Property name of the setting
Value	Value of the setting property
Level	Integer value that indicates the setting of the entity, such as ELIS, add-on, activation, and client
EntityID	ID of the entity

NotificationSettings

This table stores the information for thenotifications. Currently, only the recipient email address for each endpoint isstored.

Column	Description
ID	Unique identifier
Settings	Settings that separate the email addresses by commas
ClientID	ID of the client that is related to the setting, and this field refers to the Clients table

KeyLookupString, KeyLookupInt, KeyLookupGUID

This table stores the mapped entitiesbetween the various clients. This table facilitates the key lookup processduring data synchronization between the clients.

Column	Description
ID	Unique identifier
Source	ID of the source client, and this field refers to the Clients table
SourceKey	ID of the entity at the source node
Destination	ID of the destination node, and this field refers to the Clients table
DestinationKey	ID of the entity at the destination node
Entity	Entity that has to be mapped

Tenants

This table stores the information of thetenants.

Column	Description
TenantID	Unique identifier
Name	Name of the tenant
Description	Description of the tenant

ELISLicense

This table stores the ELIS license.

Column	Description
CustomerID	Unique identifier
Name	Name of the license
Type	Type of license
Number	License number
SequenceNumber	Sequence number
IssueDate	Issuing date of the license
ActivationDate	Activation date of the license
ExpirationDate	Expiry date of the license
CheckSum	Check sum
Division	Division ID
Certificate	License certificate

Jobs

This table stores the information of the jobs for the background task scheduler.

Column	Description
JobID	Unique identifier
Name	Name of the job
Description	Description of the job
ConfigurationUI	Details of the configuration UI
AllowConcurrentExecution	Allow concurrent execution flag
ContinueOnError	Continue execution if error flag
JobType	Type of job
EntityID	Entity unique identifier

JobActivations

This table stores the information of the job activations.

Column	Description
JobActivationID	Unique identifier
JobID	Unique identifier
Name	Name of the job
EntityID	Entity unique identifier
Configuration	Details of the configuration
LastExecuted	Date and time of the last execution
ExecutionCounter	Execution counter
Enable	Enable the flag

JobTasks

This table stores the information of the job tasks.

Column	Description
TaskID	Unique identifier
JobID	Unique identifier
Name	Name of the job
ExeIndex	Execution index
Isolated	Process isolation flag
[Assembly]	Assembly

JobTriggers

This table stores the information of the job triggers.

Column	Description
TriggerID	Unique identifier
JobActivationID	Unique identifier
Name	Name of the job
LastExecuted	Date and time of the last execution
NextExecution	Date and time of the next execution
Data	Job schedule data
TriggerType	Type of trigger
