Synergy Office Integration (SOI) allows for closer integration between Exact Synergy Enterprise and Microsoft Office.
This document describes the installation steps required for SOI to be successfully installed and operational in a terminal server environment. Once SOI is installed successfully, you will be able to perform actions such as saving and uploading documents from a terminal server. The SOI user settings can also be retrieved for subsequent logging in to the terminal server.
The setting up a terminal server is not in the scope of this document.
If you want to know the installation steps for SOI on an end-user machine, click on any of the relevant hyperlink to display a different document:
Installation on a single machine.
Installation on multiple machines simultaneously.
This document is divided into the following sections:
The infrastructure that needs to be set up includes the following:
Top
It is mandatory for SOI to be installed as the “per-machine” installation scope. When SOI is installed as the “per-machine” installation scope, the SOI client runtime component will be deployed to the following locations:
1. C:\Program Files\Exact Synergy Enterprise\Client – runtime targets
2. C:\ProgramData – runtime configuration file
Keep in mind: The installation must be done on the terminal server machine and requires administrator privilege to be able to install files in the ProgramData folder.
The parameters and their values are as follows:
To install for this user or all users
Determine the installation directory
Determine the Synergy URL
Determine the Welcome screen and Configuration Wizard
FIRSTRUN = 1 (when set to 1, the Welcome screen will be shown for the first time use of Office after an installation of SOI. Set to 0 to suppress and bypass the Welcome screen)
SETPREREQS = 1 (when set to 1, it will bypass and suppress the Configuration Wizard. Set to 0 to display and follow the Configuration Wizard dialogs)
Determine the Silent Mode installation
SILENT = 1 (when set to 1, all pop-up messages will be suppressed. If set to other value or leave out this parameter, the error and/or warning messages, if any, will be prompted during installation)
If you are using product update 243, use the following command line to install the SOI installer for “per-machine” installation scope:
Keep in mind: Ensure that the MSI is placed in the directory defined in the command, for this example, in “D:\”.
If you are using product update 245, use the following command line to install the SOI installer for “per-machine” installation scope:
msiexec /i D:\SynergyOfficeIntegration.msi /qn EXACTWIXAPPFOLDER="exactWixPerMachineFolder" SYNERGYURL=http://<Exact Synergy Enterprise Server>/<Virtual Directory Name> FIRSTRUN=0 SETPREREQS=1 USEROAMINGFOLDER=1 ALLUSERS=1 SILENT=1 /l*v D:\MSI.log
Keep in mind: The "/l*v D:\MSI.log" parameters are used to generate an install log that would be stored in the MSI.log file in the specified path. Ensure that the MSI is placed in the directory defined in the command, for this example, in “D:\”.
Users can install SOI on the terminal server for multiple Exact Synergy Enterprise environments; for example, a hosting company hosting multiple Exact Synergy Enterprise environments for different customers. Users only need to perform an initial installation on the terminal server for multiple Exact Synergy Enterprise environments.
Determine multiple Exact Synergy Enterprise environments
For example: msiexec /i D:\SynergyOfficeIntegration.msi /qn EXACTWIXAPPFOLDER="exactWixPerMachineFolder" SYNERGYURL="" FIRSTRUN=0 SETPREREQS=1 USEROAMINGFOLDER=1 ALLUSERS=1 HOSTEDENVIRONMENT=1 SILENT=1 /l*v D:\MSI.log
In the Active Directory Domain Controller, the Roaming Profile and Folder Redirection need to be configured correctly.
Creating a Roaming Profile requires the following:
· Creating a shared folder on the server and a folder for the user within the share.
Note: The correct NTFS security permissions must be defined for the shared folders.
· Defining the user’s profile location via group policy.

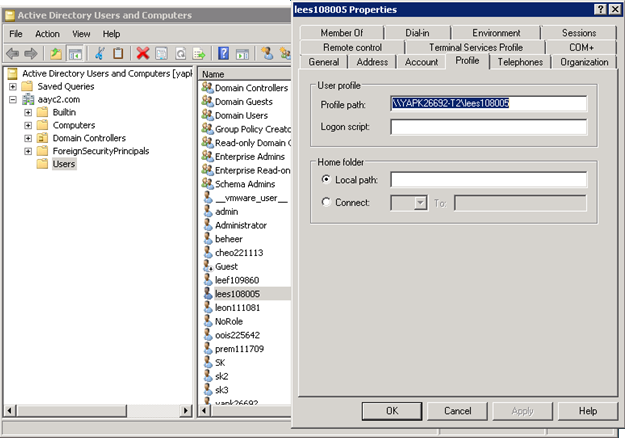

Note: The network path for each user will have to be filled in the Profile and Terminal Services Profile tabs.
Folder Redirection allows you to save portions of the user’s profile in a different location on the network. We cannot redirect every folder in a user’s profile. The folders that can be redirected are Application Data, Desktop, My Documents, and Start Menu. SOI reads and copies the configuration files to the Application Data folder, so ensure this folder is configured for folder redirection.
Creating folder redirection requires the following:
· Creating a shared folder on the server and giving everyone full control at the share level.
· Redirecting the folders via the group policy. Note: Folder redirection is not mandatory.
To redirect a folder via the group policy:
1. Open Group Policy Editor.
2. Go to User Settings, Windows Settings, and then Folder Redirection.
Note: The group policy requires redirecting each of the four folders separately, but the procedure for doing so is the same for each folder.
3. Set the folder’s Setting option to Basic – Redirect Everyone’s Folder To The Same Location.
4. Next, select Create A Folder For Each User Under The Root.
Accessing the Group Policy Management Console

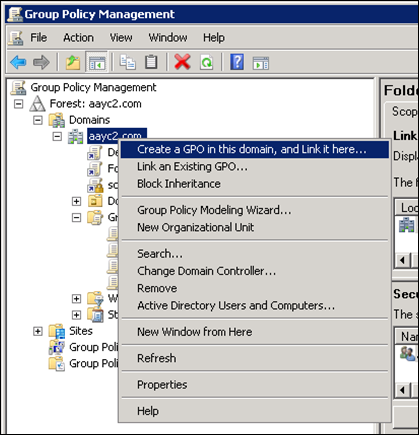

Creating and linking a GPO to the domain

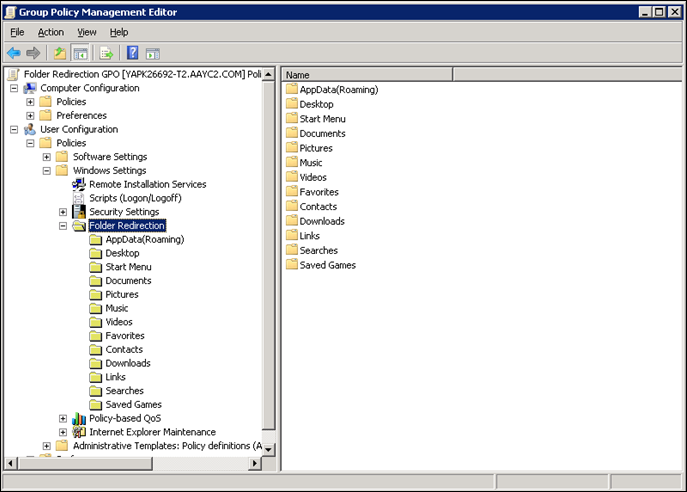

Navigating to the User configuration -> Windows Settings -> Folder Redirection

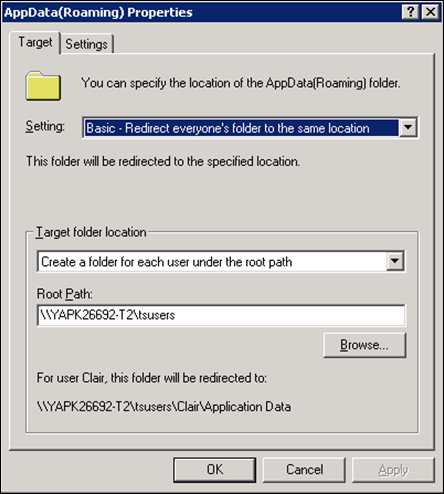

Providing the correct configuration setting for the “AppData” folder when redirecting it
If you are using product update 245, use the following command line to uninstall the SOI installer for “per-machine” installation scope:
Use the following command line to uninstall the SOI installer for “per-machine” installation scope in Exact Synergy Enterprise environments:
