E-WMS

Installation and configuration of Microsoft IIS for E-WMS on Windows Server 2012(R2)

Introduction

This document describes the steps to install and configure Microsoft IIS for E-WMS ASP on a Windows 2012(R2) server, per product update 411.

Please refer to this document for the IIS configuration in release 410 and earlier.

Description

This document contains following sections:

Prerequisites
Install Microsoft IIS
Create and configure E-WMS website
1. Application pool
2. WMS website
Troubleshooting

1. Prerequisites

It is assumed that the E-WMS ASP files are available in a dedicated E-WMS ASP folder
Microsoft .NET Framework 4.5 has to be installed (which is default pre-installed on Windows Server 2012R2)
"Visual C++ Redistributable Packages for Visual Studio 2013" (vcredist_x64.exe) has to be installed. You may have to download this package on another PC than the server itself.

2. Install Microsoft IIS

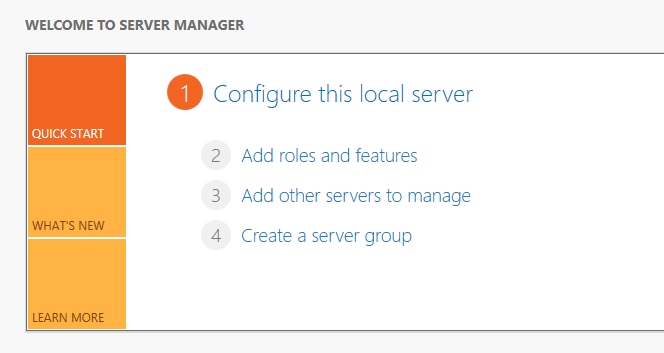

In the Windows 2012 Server Manager choose Add roles and features.

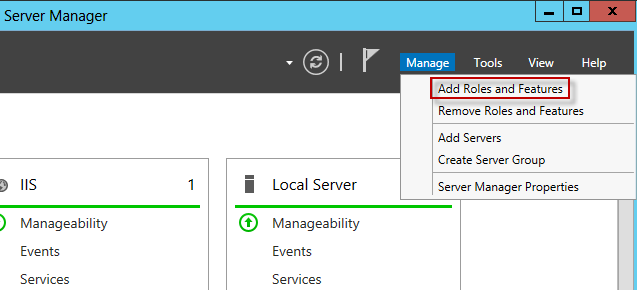

Or: select menu Manage, Add roles and features:
You may first encounter a 'Before you begin' screen, press Next

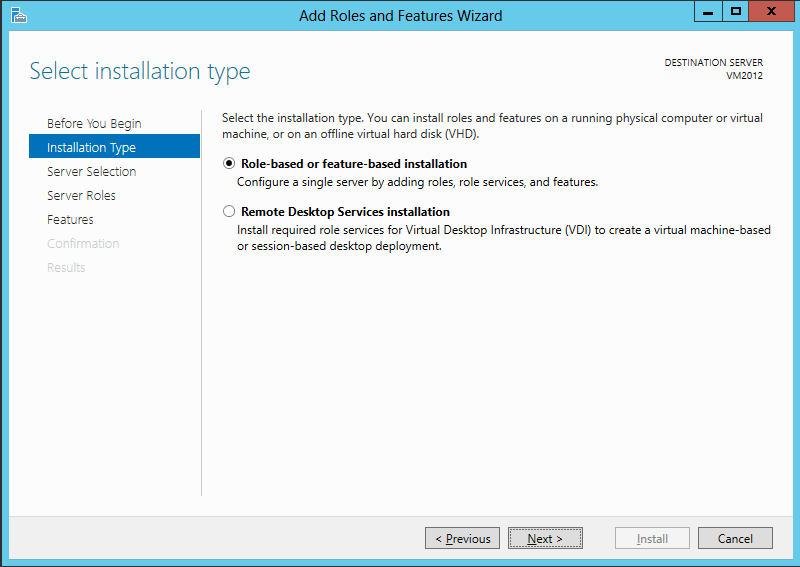

In the screen 'Select installation type', select 'Role-based or feature-based installation' and press Next:

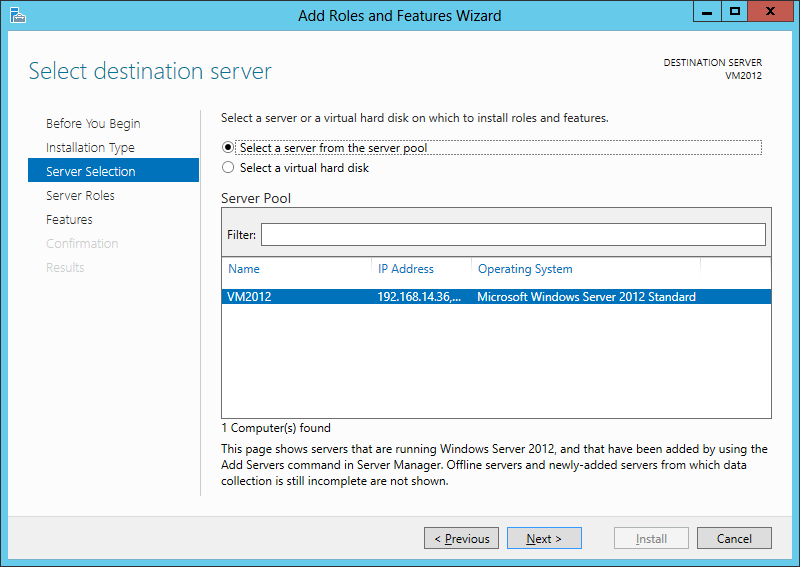

In the screen 'Select destination server', select the server you want to install IIS on, and press Next:

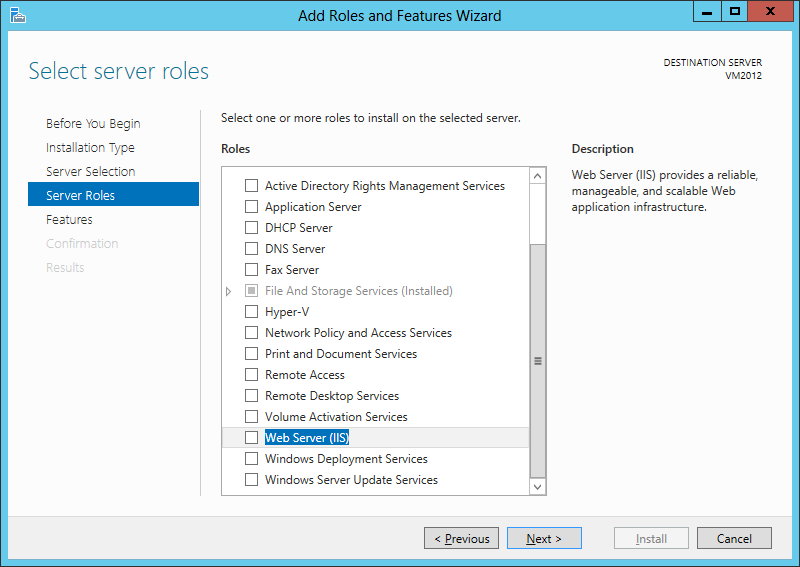

In the screen 'Select server roles', scroll down in the list and select 'Web Server (IIS)', and press Next

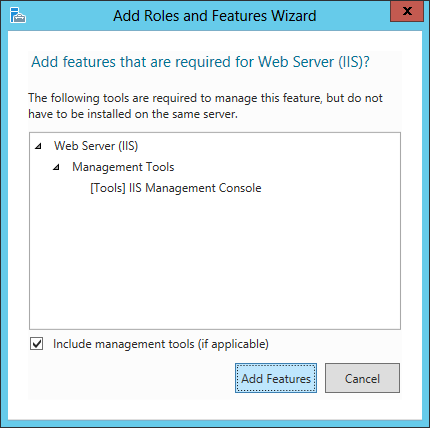

When this next screen appears, make sure the option 'Include management tools' is enabled and press 'Add features':

After this, you return to the screen 'Select server roles', where 'Web Server (IIS)' is now enabled. Press Next.

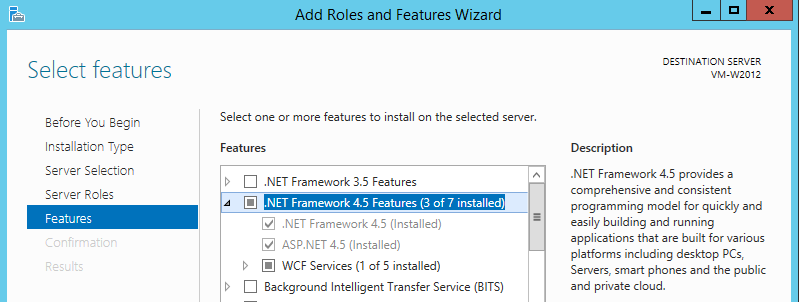

In the next screen (titled 'Select features'), expand '.NET Framework 4.5 Features' and make sure '.NET Framework 4.5 ...' is enabled, and press Next, and Install.

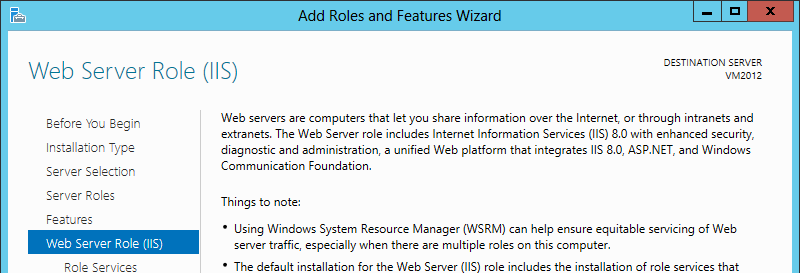

Next, an information screen titled 'Web Server (IIS)' shows; press Next.

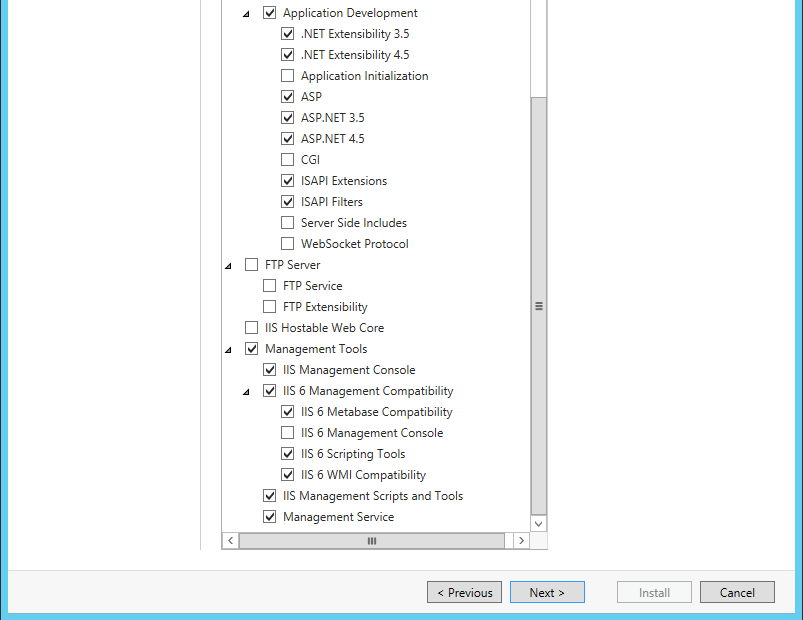

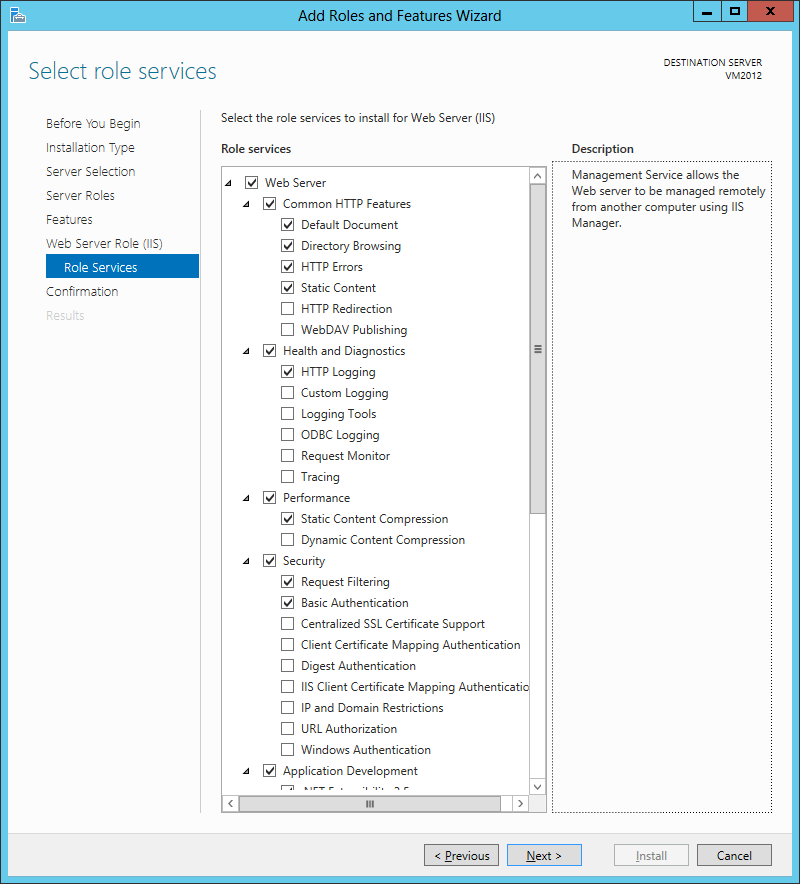

In the next screen the features for IIS can be selected:

For E-WMS ASP, following is minimal required:
- Default document
- Static content
- Application development
  - .NET Extensibility 4.5
  - ASP
  - ASP.NET 4.5
- Management tools: it is not mandatory but recommended to install all features
E-WMS does not use 'Windows authentication' but 'Anonymous authentication'.

Press Next when done.
In the next 'confirmation' screen, press Install. You can leave the installation screen open, or close it. The installation will continue in the background.
When the installation is done, the Server Manager Dashboard screen will show.

3. Create E-WMS website

Start the IIS manager to create or configure the E-WMS ASP website. You can start IIS manager in a number of ways;

Press (Windows Key)+R, type INETMGR and press Enter
In Server Manager (Dashboard): select Tools menu, Internet Information Services (IIS) Manager

In the IIS manager, expand the IIS server name.

3.1 Application pool

In IIS, usage of non-default .NET usage or for instance usage of a 32bit application, is managed through IIS 'Application pools'.
Since release 411, E-WMS uses .NET 4, is a 64bit application and uses 'integrated pipelines'.
These are the default settings for the IIS 'DefaultAppPool' which is default linked to new web applications.

Therefore, creating and linking a specific application pool for E-WMS is optional from release 411.
Application pools are also used to isolate web applications. If you are using multiple web applications on this IIS server, it is advised to create a separate application pool for each web application.

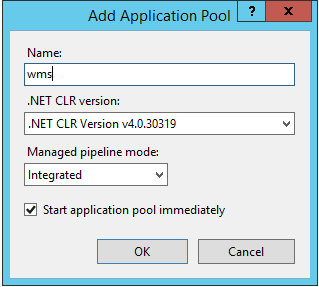

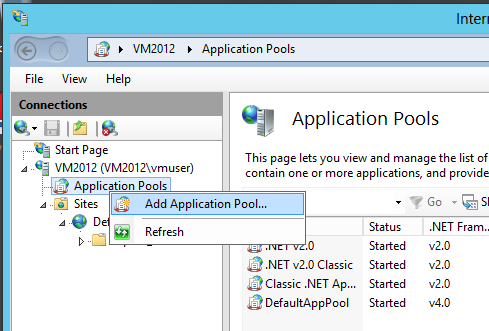

To create an application pool for E-WMS, right-click on Application pools and select Add application pool.

wms

Following configuration is required for E-WMS:

.NET Framework version = .NET Framework v.4.0xxxx
Managed pipeline mode = Integrated

3.2 WMS website

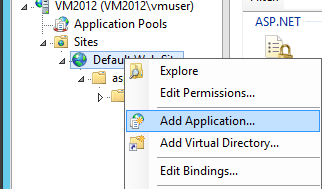

To create a new website, expand the IIS server name, expand Sites, right-click on Default Web Site, then choose Add application:

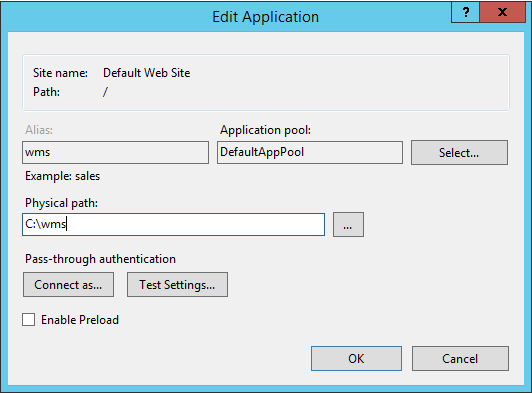

In the next screen, decide on the website name, for example 'wms'. This will be the last part of the URL that will be used on the WMS hand terminals (http://webserver/wms).

Application pool: leave at the default, or select the application pool created for E-WMS
Physical path: press the browse button and select the E-WMS ASP folder created previously

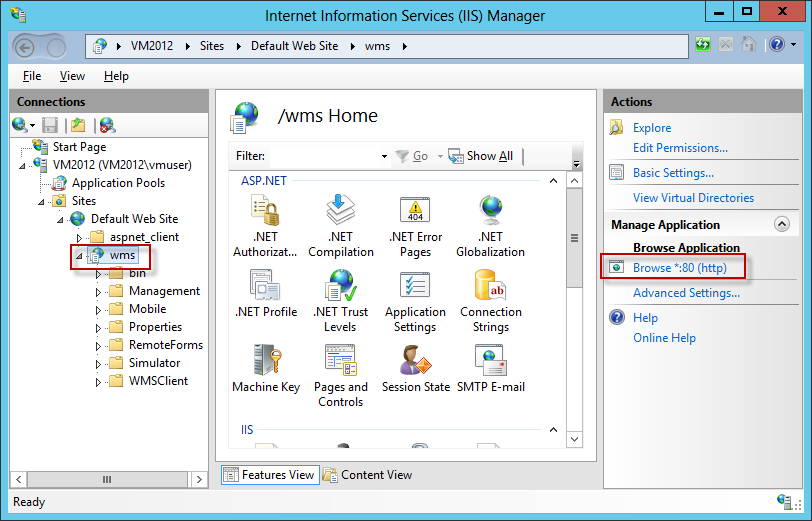

Now you can test if the site would work. Select Browse *:80 http:

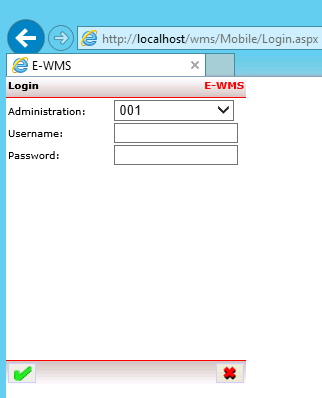

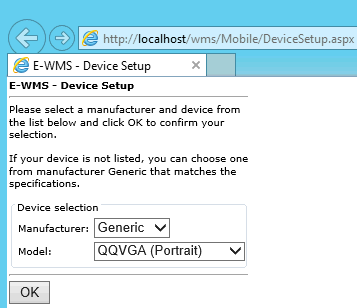

When one of these pages shows, then the website works OK and you can close Internet Explorer.

Next, you can configure folder rights (only required when using Internet Explorer as WMS client) and setup the database connections for E-WMS ASP.

After that. the next test would be to access the website from WMSclient on a PC or a scanner.

4. Troubleshooting

If you do not see the screen as in the previous chapter, but an error message instead, you can check in support documents if the error message is known.

Some general hints:

make sure the application pool is properly configured and linked to the WMS website
make sure that only 'Anonymous authentication' is enabled, in the 'Authentication' configuration option for the website
make sure 'default.aspx' is listed in the web site configuration option 'Default document'
