Exact Synergy Enterprise REST Services

1.1 Introduction

Exact provides a large set of web services with Exact Synergy Enterprise to retrieve, create and update data in Exact Synergy Enterprise. The web services are offered using two protocols:

• SOAP
• REST

This document focusses on how to use the REST web service of Exact Synergy Enterprise. It will give an example on how to retrieve and create requests including binary data. This document comes with a demo application (including sources): ESE_JSON_REST_Example

1.2 Architecture

REST stands for Representational State Transfer. REST is not a protocol or standard but a design architecture. It is an attempt to offer a more simple way for machine interaction than complex mechanisms like CORBA, RPC and SOAP. REST services do this by using simple HTTP requests to exchange data.

Like SOAP web services, REST web services are platform independent and language independent. You can implement your client on for example UNIX or Windows and use any language. All popular languages (like VB.Net, C#, Java, JavaScript, Python, etc.) offer libraries to make the use of REST services easy.

Although REST is a lightweight architecture it offers all functionality also available with for example SOAP. REST offers all four CRUD (create, read, update and delete) operation by using HTTP requests (PUT, GET, DELETE). Please note that not all Exact web services implement all four CRUD operations.

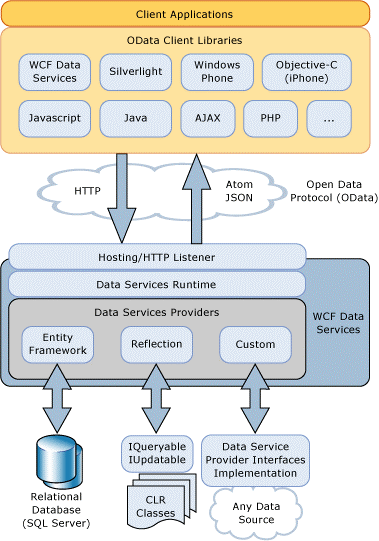

To exchange the data Exact uses the open data protocol. Exact has implemented two data schema’s that can be used:

1) Atom XML
2) JSON

In a .Net environment Atom XML is quite convenient, because .Net offers a good XML library. In other environments JSON might be more convenient. The examples in this document use JSON in VB.Net.
Exact Synergy Enterprise REST services are governed by IIS and the service model credentials. The Exact web services use NTLM as authentication mechanism.

See below for an example of the HTTP header:

GET http://dijk177740-vpc1/252/services/Exact.Entity.REST.svc/Request/?$top=1&$filter=RequestID%20eq%205ea5ee9e-723f-47d8-be91-de5a6000b188%20and%20PrepareDownloadRequestComments%20eq%20true%20and%20PrepareDownloadWorkflowComments%20eq%20true HTTP/1.1



Content-Type: application/json

Accept: application/json,text/javascript; charset=utf-8

Host: dijk177740-vpc1

Connection: Keep-Alive

1.3 Reference

• http://www.odata.org/
• http://msdn.microsoft.com/en-us/library/ff478141.aspx
• http://rest.elkstein.org/
• http://www.json.org/

Also the Exact database documentation: 18.127.775 will be useful.

• Development environment like:
  • Visual studio 2012
  • Eclipse
• Browser:
  • Internet explorer
  • Firefox
  • Chrome
• Network monitor tools:
  • Fiddler (https://fiddler2.com/fiddler2/ )
  • Wireshark (https://www.wireshark.org/ )
• Text editors:
  • Notepad++ (with XML tools)
  • UltraEdit
  • XML Spy

The examples in this document are written in VB.Net. All examples are in a single .Net 4.0 windows form application. In the text the main functions will be discussed. To develop and test the examples I used the following tools:

• Windows 7
• Exact Globe Next 405 (with a Mac Bean demo database)
• Visual studio 2012
• Internet explorer
• Fiddler
• Notepad++

http://localhost/Synergy/services/Exact.Entity.REST.svc/$metadata

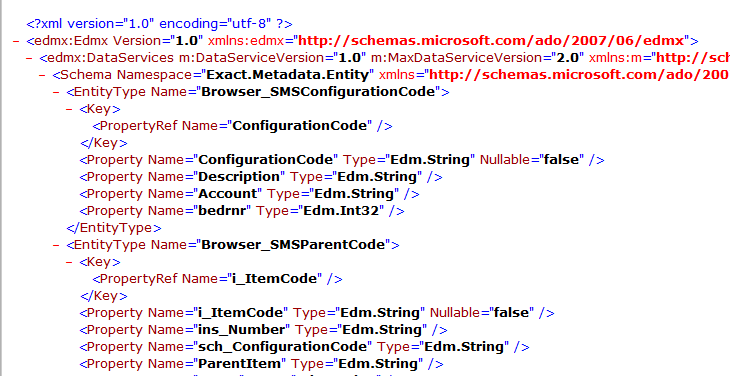

This service returns an XML file with the metadata of all available entities.

4.1 Open data query options

• $top
• $filter
• $select
• $orderby

$top is used to pass the (max) amount of records you want to retrieve.
$filter is used to pass the filtering you want to apply on the data. The following logical operations are supported:

• eq Equal
• ne Not equal
• gt Greater than
• ge Greater than or equal
• lt Less than
• le Less than or equal
• and Logical and

$select is used to limit the properties that are retrieved. This is a comma separated list of property names.
$orderby is used to define the order of the records that are retrieved. This is a comma separated list and you can make use of asc and desc to change the sort order.

4.2 Retrieve URL

Combining the different operations, an URL to retrieve a request can look like:
http://localhost/Synergy/services/Exact.Entity.REST.svc/Request/?$top=1&$filter=RequestNumber eq 1611 and PrepareDownloadRequestComments eq true and PrepareDownloadWorkflowComments eq true

4.3 Example

The example application uses a help function:

Private Function RequestAndResponse(ByVal xml As String, ByVal method As String, ByVal url As String) As String

The function RequestAndResponse is used to create the HTTP request, send it to the REST service and retrieve the response message.

In this function an HttpWebRequest is created and the following properties are set:

• Credentials (You have to use NTLM credentials)
• ContentType (This is the type of the payload, in this case atom+xml)
• Accept (This is the type of the response, in this case also atom+xml)
• Method (This is the HTTP method, GET, POST, DELETE)

With httpRequest.GetResponse() the HttpWebResponse object is retrieved. The response stream of this object contains the retrieved JSON string (or XML text if you’re using atom+xml).

Retrieving a request is done in:

Private Sub RetrieveRequest()

In the RetrieveRequest you can see an URL is created with an OpenData query. When retrieving you don’t have to provide a JSON string. When the URL is send to RequestAndResponse the response stream contains a JSON string with all property values of the request (Of course you can retrieve multiple requests in one response).

In the code a JavaScriptSerializer object is used to retrieve the properties:

Dim js As New JavaScriptSerializer

Dim jsonObject As Dictionary(Of String, Object) =

          js.DeserializeObject(sResponse)



Dim document = CType(jsonObject("d"), Dictionary(Of String, Object))



For Each r As Dictionary(Of String, Object) In document("results")

          tbRequestType.Text = CType(r("RequestType"), String)

You can also use Fiddler to inspect the RAW HTTP messages.

• Request comment
• Workflow comment

Retrieving binary data is a bit more complex, because of the size of the data. To be able to retrieve a large amount of (binary) data the Binary web service offers the data in multiple chunks, that you need to stitch together in your code.

5.1 Retrieve URL and response

The retrieve URL looks something like.

http://localhost/Synergy/services/Exact.Entity.REST.svc/Binary/?$top=1&$filter=MessageID%20eq%20guid'df7a5a75-cff4-4253-a581-5202454e9ee7'

Note that you must provide a guid of the binary data. This guid was retrieved when retrieving the request data see the properties:

• MessageIDRequestComment
• MessageIDWorkflowComment

The response looks like:

{"d":{"results":[{"__metadata":{"id":"http://localhost/Synergy/services/Exact.entity.REST.svc/Binary(guid'df7a5a75-cff4-4253-a581-5202454e9ee7')","uri":"http://localhost/Synergy/services/Exact.entity.REST.svc/Binary(guid'df7a5a75-cff4-4253-a581-5202454e9ee7')","type":"Exact.Metadata.Entity.Binary"},"MessageID":"df7a5a75-cff4-4253-a581-5202454e9ee7","Sequence":0,"Data":"Pz8/Zw==","Encoded":false,"DataString":""}],"__next":"http://localhost/Synergy/services/Exact.Entity.REST.svc/Binary/?$filter=MessageID%20eq%20guid'df7a5a75-cff4-4253-a581-5202454e9ee7'&$skiptoken=2395L"}}

Note that the response message contains a property __next, this property contains the URL you need to send to retrieve the next chunk of data.

5.2 Example

Retrieving the binary data is done in the function:

Private Function RetrieveBinaryStream(sGuid As String) As MemoryStream

In this function all the chunks of binary data of a certain messageID is retrieved and stitched together:

sUrl = sUrl & String.Format("Binary/?$top=1&$filter=MessageID eq guid'{0}'", sGuid)

While sUrl.Length > 0

          sResponse = RequestAndResponse("", "GET", sUrl)

          Dim jsonObject As Dictionary(Of String, Object) =
                      js.DeserializeObject(sResponse)

          Dim document = CType(jsonObject("d"), Dictionary(Of String, Object))

          If document.ContainsKey("__next") Then
                      sUrl = document("__next")
                      If Not sUrl.Contains("$top=") Then sUrl = String.Format("{0}&$top=1", sUrl)
          Else
                      sUrl = ""
          End If

          For Each r As Dictionary(Of String, Object) In document("results")
                      b = Convert.FromBase64String(CType(r("Data"), String))
                      s.Write(b, 0, b.Length)
          Next
End While
s.Close()

Please note that there is a while loop to retrieve all chunks until the response message no longer contains a __next property.

6.1 HTTP request

For creating data you must use the POST method of the HTTP request and send a JSON string as payload. In this JSON string you provide all properties you want to set on the request.

6.2 Metadata

Some of most important properties of a request are:

Field	Value	Example
RequestID	The GUID of the request	4F017C70-8178-4B2D-A885-C08F46530B30
RequestNumber	The number of the request	1611
RequestType	The type of the request	0 (=Task)
Description	The description of the request	Test Task
MessageIDRequestComment	The GUID of the binary message that contains the request comment	DF7A5A75-CFF4-4253-A581-5202454E9EE7
MessageIDWorkflowComment	The GUID of the binary message that contains the workflow comment	DF7A5A75-CFF4-4253-A581-5202454E9EE7

6.3 Example

The request is created in:

Private Sub CreateRequest()

This sub calls the function CreateBinary to upload the request comment and the workflow comment. This function is described in the following chapter.

sResponse = RequestAndResponse(json.ToString(), "POST", sUrl)

Dim jsonObject As Dictionary(Of String, Object) =
js.DeserializeObject(sResponse)
Dim document = CType(jsonObject("d"), Dictionary(Of String, Object))
tbRequestID.Text = CType(document("RequestID"), String)
tbRequestNumber.Text = CType(document("RequestNumber"), String)

In this case the RequestAndResponse method is called with the POST method, also we now provide a JSON string with the URL. This JSON string contains the properties we want to set eg:

{"RequestType":0,"Description":"Test task","MessageIDRequestComments":"06eac875-eb0f-4bb4-acd6-aa51de43a897","MessageIDWorkflowComments":"5490bc3d-3c31-498f-9561-f66a3e1db032"}

The response contains a key: d that contains all the returned property values that were set by Synergy itself. Again I use a JavaScriptSerializer object to retrieve the request ID and request Number.

7.1 Metadata

Field	Value	Example
MessageID	The GUID of the message	4F017C70-8178-4B2D-A885-C08F46530B30
Sequence	The sequence number of the chunk	0 (, 1, 2, 3)
Encoded	If the data is Base64 encoded	True
DataString	The (Base64 encoded) data	dGVzdCB3b3JrZmxvdyBjb21tZW50

7.2 Example

The binary data is created in the function:

Private Overloads Function CreateBinary(s As MemoryStream) As String

The function returns the GUID of the message which can be passed to another entity like a request (see previous chapter). I use a while loop to upload small chunks of the data.

ms.Position = 0
retval = ms.Read(outByte, 0, buffSize)
Do While retval = buffSize
          json.Clear()
          json.Append("{")
          If messageID <> "" Then
                      json.Append(String.Format(JSON_STRING, "MessageID", ""))
          End If
          json.Append(String.Format(JSON_STRING, "Sequence", packetNum))
          json.Append(String.Format(JSON_STRING, "Encoded", "true"))
          json.Append(String.Format(JSON_STRING, "DataString", """" &
                      Convert.ToBase64String(outByte) & """"))

          sResponse = RequestAndResponse(json.ToString(), "POST", sUrl)

          If messageID = "" Then
                      Dim js As New JavaScriptSerializer

                      Dim jsonObject As Dictionary(Of String, Object) =
                                  js.DeserializeObject(sResponse)

                      Dim document = CType(jsonObject("d"),
                                  Dictionary(Of String, Object))

                      messageID = CType(document("MessageID"), String)
         End If

          retval = ms.Read(outByte, 0, buffSize)
Loop

Please make sure that after the while loop you upload the remaining part of the stream (see the full source code for this).
